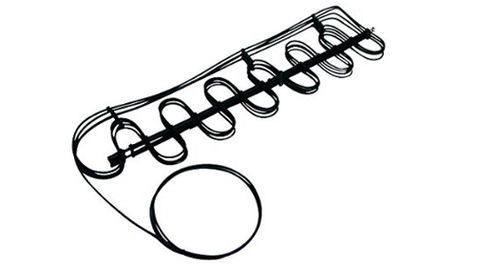

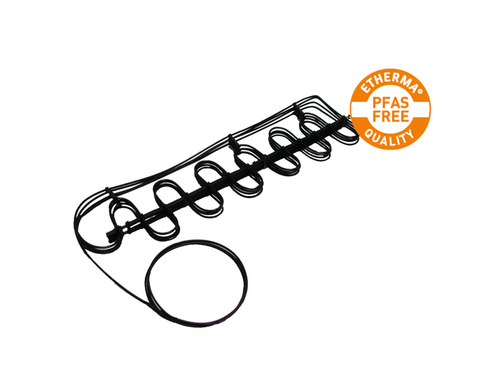

ETHERMA BRS-TS – BESPOKE STAIR HEATING IN CONCRETE SCREED
ETHERMA heating mats are factory-made according to your plan. The heating mats are produced according to your size of steps. The number of steps is important because we produce a connected unit. The finish for each single step doesn't make sense because the pipe coupling at the building site would take too much time. The use of the return conductor-heating cables makes the installation easy and simple.
Benefits of this product
-
Soft elasticity for even laying
-
Simple installation thanks to custom-made mats
-
Only one connector cable
Technical data
| Voltage: | 230 V, 400 V |
| Output: | 250 to 350 W/m² |
| Special outputs: | 200 W/m² |
| Nominal temperature_ | up to 105°C |
| Min. installation temperature: | - 5°C |
| Max. bending radius: | 5 d |
| Thickness of heating cable: | 7 mm |
| IP rating: | IP X7 |
| Connection cable: | 1 x 3 m; 3 x 1,5 (2,5) mm² |
| Certification - heating cable: | CE compliant |

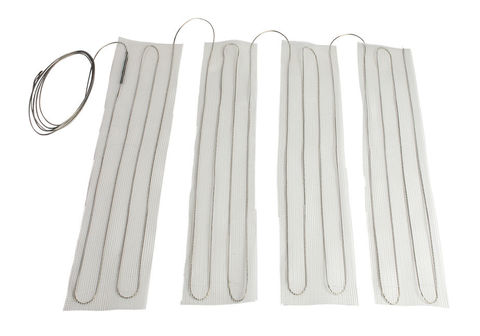

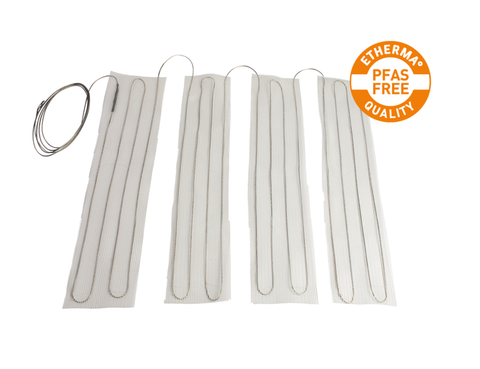

ETHERMA NSP-TS – BESPOKE STAIR HEATING IN THIN LAYERING
ETHERMA stairway heating NSP-TS is ideal for post-installation under tiles in adhesive bed. Particularly advantageous for free-standing stairs.
Prepared in our plant to specifications, integrated individual step mats comprising a fibre-glass armoured braid and robust special heat conductor with a permanently waterproof connected cooling line.
Benefits of this product
-
Only one connector cable
-
Connection line custom-made
-
Only 3 mm thin
-
Low operating costs
-
Short heating response and fast melting effect
-
Chemically resistant
-
230 and 400 V
Technical data
