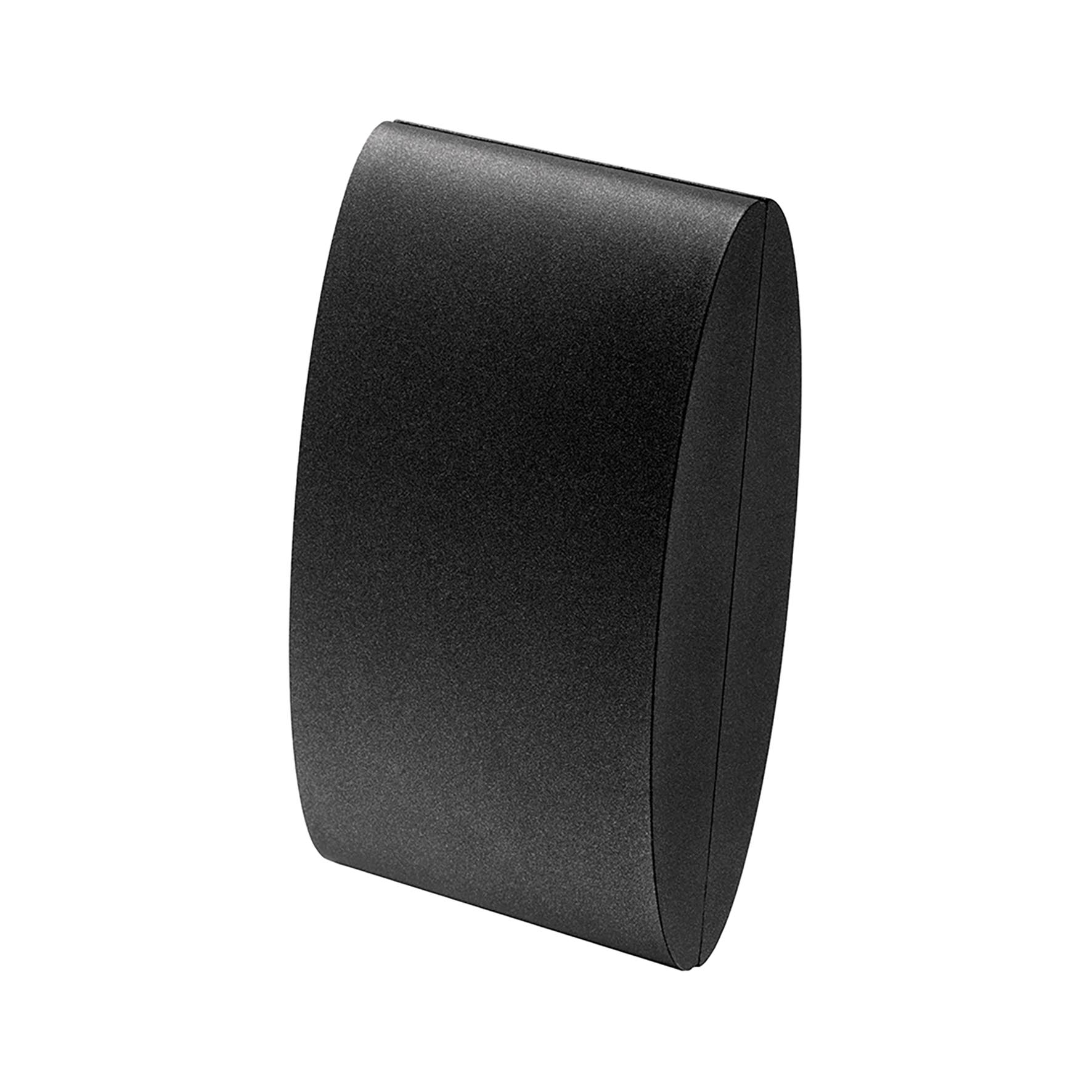

SOLAMAGIC Bluetooth-Dimm-Modul X3, bis 3kW, anthr., B 11.5cm
Best.nr. 9300215
Typ: SM-DIMM-X3-BT-NAMit dem SOLAMAGIC Bluetooth-Dimm-Modul können die Strahler S1+ und S3 sowie D3 per Bluetooth 4.1 Steuerung in 3 Stufen (33/66/100%) gedimmt werden. Das Dimm-Modul kann sowohl über die kostenlose App mit dem Smartphone oder Table als auch mit dem optionalen Handsender SM-BT-HS gesteuert werden. In Schnellmontage lässt es sich einfach an den Infrarotstrahler anstecken. Es ist erhältlich in den Farben Weiß, Titan und Nano-Anthrazit, für Strahler bis 3 kW, Schutzart: IP 44, Abmessungen: 115 x 200 x92 mm, Reichweite: 20 m, 230 V.
Technische DatenETIM-9.0
Power consumption | 3.5 W |
Assembly arrangement | Basiselement mit Komplettgehäuse |
Method of operation | Funk |
Number of modules (module system) | 1 |
App control via Bluetooth | Yes |
Dimming phase cut-on (leading edge) | Yes |
Type of load | universal |
Applicable with transmission button | Yes |
Mounting method | Aufputz |
Type of fastening | Befestigung mit Schraube |
Material | Metall |
Material quality | Aluminium |
Surface protection | anodisiert/eloxiert |
Surface finishing | glänzend |
Colour | anthrazit |
RAL-number (similar) | 7016 |
Suitable for degree of protection (IP) | IP44 |
Impact strength | IK03 |
Nominal voltage | 230 V |
Frequency | 50 Hz |
Control voltage | 230 V |
Nominal power resistive load | 3000 W |
Nominal power inductive load | 16 VA |
Nominal power capacitive load | 5 VA |
Connection type | sonstige |
Core cross section | 1.5 mm² |
Device width | 115 mm |
Device height | 200 mm |
Device depth | 92 mm |
