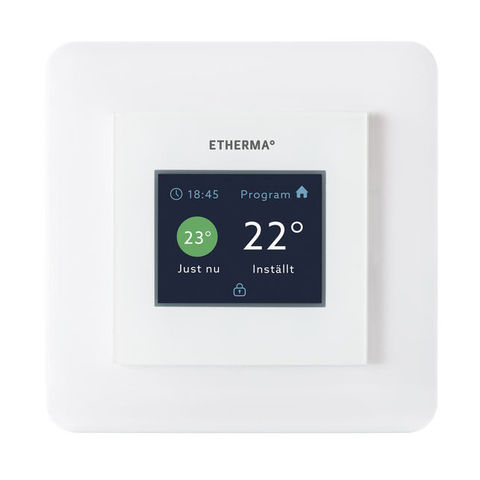

eTOUCH ECO – SWITCH-MOUNTED THERMOSTAT WITH TOUCHPAD
Modern, precise control is the key to saving operating costs and avoiding wasting valuable energy. The eTOUCH eco switch mounted thermostat design is characterised by its particular user-friendliness, with the Easy-Start-Up program for easy initial installation and a colour display with touch pad. Another winner is ECO+ intelligent control for smooth, completely automatic heating system optimisation which allows to save energy and has the self-learning function.
Benefits of this product
-
Easy menu navigation
-
4 programmes: Home, office, timer and heating
-
Installation mode: Sensor and hysteresis calibration,
control line for external timer -
Self-learning function
-
Switching from summer to winter time is entirely automatic
-
Switchable between output control, underfloor, room or combi thermostat
-
Temperature drop detection
-
Ecodesign guidelines compliant
Technical data
| Voltage: | 230 V |
| Current: | 16 A |
| Temperature range: | 5 to 35 °C |
| Installation: | In flush-mounted switch-box |
| Calibration: | adjustable +/- 0.2 to 2.0°CAdjustable +/- 0.3 °C |
| Power back-up | 36 hours |
| Frame colour: | white, polished |
| Dimensions: | 55 x 55 mm (without frame) |
| Floor sensor: | 3 m (max. 50 m) |
| IP rating: | IP 21 |
| Certification: | SEMKO |
Application Area
Wired switch mounted thermostat for all floor heating mats, infrared heaters and other heating devices.
Frame
Compatible frames:
Manufacturer: BERKER
Type: S1 with no intermediate frame
Colour: Polar white / gloss
Fit accuracy: Good
Manufacturer: Busch & Jäger
Type: 1721-1214 Reflex SI Linear spring
Colour: Alpine white
Fit accuracy: Good
Manufacturer: Busch & Jäger
Type: Futur linear & Futur linear central plate
Colour: Studio white
Fit accuracy: Very good
Manufacturer: Jung
Type: LS 98 Duroplast & LS961 Z5 WW Thermoplast central plate
Colour: Alpine white, gloss
Fit accuracy: Very good
Manufacturer: Jung
Type: AS58 WW Duroplast
Colour: Alpine white, gloss
Fit accuracy: Very good
Manufacturer: Jung
Type: AS58 Duroplast
Colour: Gloss white
Fit accuracy: Very good
Non-compatible frames:
Manufacturer: Merten
Type: System M with intermediate frame
Fit accuracy: NO
Manufacturer: Merten
Type: Merten M-Smart
Fit accuracy: NO
Manufacturer: Busch & Jäger
Type: SI Duro 2000
Fit accuracy: NO
