LAVA® INFRARED HEATING Product overview and technical data.

LAVA® BASIC 3.0 The way to efficient and stylish heating technology.

Discover the LAVA® BASIC 3.0, our most advanced infrared heating panel that combines stylish design with superior heating performance. With a thickness of only 48 mm and a specially developed coating, this panel brings exceptional functionality and efficiency to your home or office. The innovative coating of the LAVA® BASIC 3.0 ensures an optimal radiant effect, which contributes to an even and efficient heat distribution. Thanks to this innovative technology, you not only save on heating costs, but also protect the environment by reducing energy consumption. The slim metal housing offers a long service life and excellent heat conduction. With its timeless design, it blends seamlessly into any interior design. The versatile mounting options - whether on the wall, ceiling or as part of a grid ceiling - make the LAVA® BASIC 3.0 the ideal solution for a wide range of applications.


Flexible and simple heating solutions

An outstanding feature of the LAVA® BASIC 3.0 is its flexibility of use. It can be used both as zone heating for targeted heating of specific areas and as full heating for comprehensive heat distribution throughout the entire room. This enables individual adaptation to your heating requirements. A particular advantage of the LAVA® BASIC 3.0 is its simple installation, which can easily be carried out by just one person. This saves time and installation costs and makes handling even more convenient.

Why invest in high-quality and sustainable heating technology? The LAVA® BASIC 3.0 combines minimalism, style and high performance in one product. Experience the future of heating with the LAVA® BASIC 3.0 infrared heating panel - convenient, efficient and environmentally friendly.

DISCOVER THE INNOVATIONS FROM ETHERMA 2024

Get the groundbreaking innovations from ETHERMA 2024 now and experience the difference in comfort and efficiency! Click here to download our folder and find out more about our tailor-made solutions that reduce your energy consumption and improve your quality of life. Act quickly and benefit from state-of-the-art technology and sustainable heat. Find out more now and shape your future!

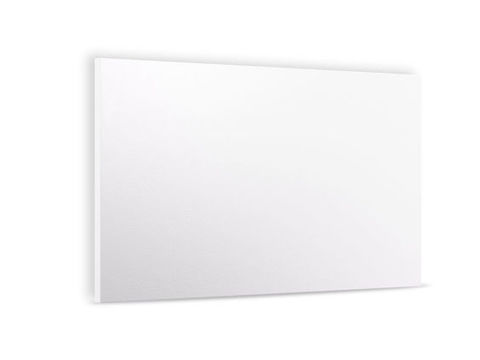

LAVA® BASIC 3.0 White

  • Suitable for ceiling and wall mounting

    Ideal for the ceiling thanks to lightweight construction

    New bracket for easy one-man installation

    High radiation efficiency

    Maximum radiation to the front thanks to optimally insulated rear side

    325 & 680 W suitable for grid ceilings (625 x 625 mm)

    No service, no maintenance required - saves money

    Magnetic field-free

Voltage: 230 V
Output: 200-1350 W
Surface temp.: max. 120°C bei Deckenmontage / max. 95°C bei Wandmontage
Surface: Metal
Color: White / Nano-Anthracite
Device/mounting hight: 18/48 mm
Installation heights Ceiling installation: min. 1.85 m up to max. 2.8 m
Optimal installation height Ceiling installation: 2.40 m to 2.60 m
IP rating: IP X4
Connection cable: 1 m, 3 x 1,0 mm² without plug
Installation: Wall & ceiling
Certification: EC compliant

The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.

The following is a guide:

15-40 W/m² Low energy and passive housing

45-65 W/m² Well insulated housing

70-85 W/m² Moderately insulated housing

90-110 W/m² Poorly insulated housing

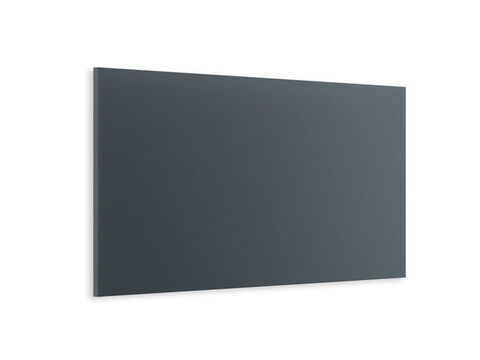

LAVA® BASIC 3.0 Nano-Anthracite

  • Suitable for ceiling and wall mounting

    Ideal for the ceiling thanks to lightweight construction

    New bracket for easy one-man installation

    High radiation efficiency

    Maximum radiation to the front thanks to optimally insulated rear side

    325 & 680 W suitable for grid ceilings (625 x 625 mm)

    No service, no maintenance required - saves money

    Magnetic field-free

Voltage: 230 V
Output: 200-1350 W
Surface temp.: Ceiling installation max. 120 °C / Wall installation max. 95 °C
Surface: Metal
Color: White RAL 9016, Nano-anthracite RAL 7016
Device/Installation height: 18/48 mm
IP rating: IP X4
Connection cable: 1 m; 3 x 1.0 mm²
Installation: Wall & ceiling
Systemaufbau: EC compliant

The selection of the output depends on the heat demand of the room (height: 2.5 m) and the heating application.

The following is a guide:

15-40 W/m² Low energy and passive housing

45-65 W/m² Well insulated housing

70-85 W/m² Moderately insulated housing

90-110 W/m² Poorly insulated housing
