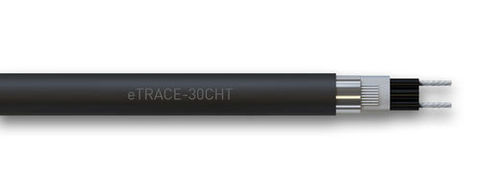

ETHERMA eTRACE-30CHT Constant trace heating tape for roof & gutter heating
The eTRACE-30CHT constant heating tape is ideal for heating box gutters. The heating tape is made of soft-elastic, insulated, flexible tape element with constant power. Execution according to VDE regulation with soldered resistance wire. It lies flat in the gutter and reliably prevents the snow from "tunneling". In order to achieve the lowest possible operating costs for gutter heating, it is necessary for the heating tape to have optimal contact with the gutter. Constant heating tapes are used in particular in metal box gutters.
Please note: Constant heating tapes must not be installed in plastic channels and drains.
Product benefits
-
Highly elastic - no inherent stiffness
Excellent heat transfer
High efficiency
Fast defrosting effect
No high inrush current
Can be cut to length every 60 cm, can also be made to measure at the factory
Quick and easy assembly
Connection required from only one side
UV and ozone resistant
Resistant to acids and alkalis
Technical data
| Voltage: | 230 V |
| Output: | 30 W/m |
| Temperature: | 200°C |
| Min. installation temp.: | - 60°C |
| Max. single length: | 58 m |
| Min. bending radius: | 25 mm |
| Dimensions: | 11 x 8 mm |
| Weight: | 85 g/lfm |
| Certification: | EC compliant |
Planning aid:
Heating circuit lengths:
Taking into account
-
230 V nominal voltage
-
Slow-blow fuses (C-characteristic) with max. 80% utilization result in the following maximum heating circuit lengths:
Rating fuse (A): 16 heating circuit lengths (m) for: eTRACE-30CT = 70
Hint
Constant heating tapes must not be installed in plastic channels, as these are made of temperature-unstable material.
