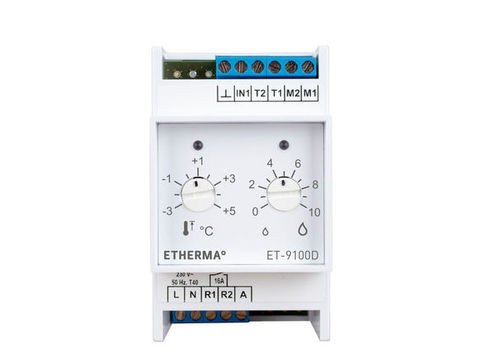

ET-9100D – Control system for roof gutter and roof heating systems Entry model
The ET-9100D ice and snow detection system is optimally suited for use with roof
gutter heating systems, and, as an entry-level model, for the control of smaller
units with a single temperature and humidity sensor and a single heating circuit.
Its two control dials, which control the activation temperature and humidity
threshold respectively, ensure easy start-up. Further functional parameters, such
as the lower switch off temperature, minimum and reheating
times, can be set in parameter mode as required. The operating display comprises
two tri-colour LEDs. Suitable for a single sensor (ET-3354).
Benefits of the product
-
For areas up to 50 m²
-
Controls a heating zone
-
Suitable for sensor ET-3354 (sold separately)
-
Consider temperature and humidity
-
Reliable and safe
Technical details
| Voltage: | 230 V |
| Relay output: | 16 A |
| Mounting: | On standard rail |
| Space requirements: | 3 TE in accordance with DIN43880 |
| Temp. range: | -30 °C to +80 °C |
| Certification: | CE comliant |
| Re-heating function | |
| Alarm signal for sensor error status |
